| Drive motor frequency, Hz | 50, 60 |
|---|---|
| Flow rate, m³/h | 4–350 |
| Applications | Water supply, Building services, Industry and process applications |
| Head, m | 20–630 |
| Pumped Liquid Temperature, °C | 0–200 |
| Bearing Type | rolling bearing, plain bearing |
| Connection Type | flange |
| Drive Type | electric motor |
| Impeller Type | closed/radial |
| Lubrication Type | grease lubrication, lubricated by pumped medium |
| Shaft Seal Type | gland packing, mechanical seal |

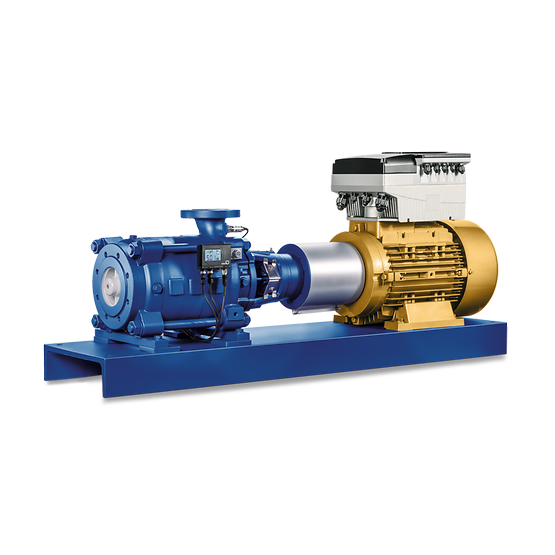

KSB Multitec E / F / V
A horizontal or vertical multistage ring-section centrifugal pump, with a spacer coupling or close-coupled design, axial or radial suction port and cast radial impellers. Applications include general and drinking water supply, industry, pressure boosting, irrigation, power stations, heating, filtration, firefighting, hyperfiltration, washing and snowmaking. It handles feedwater, warm and hot water, condensate, distillate, solvents, lubricants and fuels. Code: MTC.
Supply from the manufacturer
We will help you select the equipment and specify the configuration for your application.
Lead time depends on the model and configuration.
Request a quotation to confirm the price and delivery schedule.
