| Drive motor frequency, Hz | 50, 60 |
|---|---|
| Flow rate, m³/h | 4–1050 |
| Applications | Water supply, Building services, Industry and process applications |
| Head, m | 20–1000 |
| Pumped Liquid Temperature, °C | 0–200 |
| Bearing Type | rolling bearing, plain bearing |
| Connection Type | flange |
| Drive Type | internal combustion engine, turbine, electric motor |
| Impeller Type | closed/radial |
| Lubrication Type | grease lubrication, oil lubrication, lubricated by pumped medium |
| Shaft Seal Type | gland packing, mechanical seal |

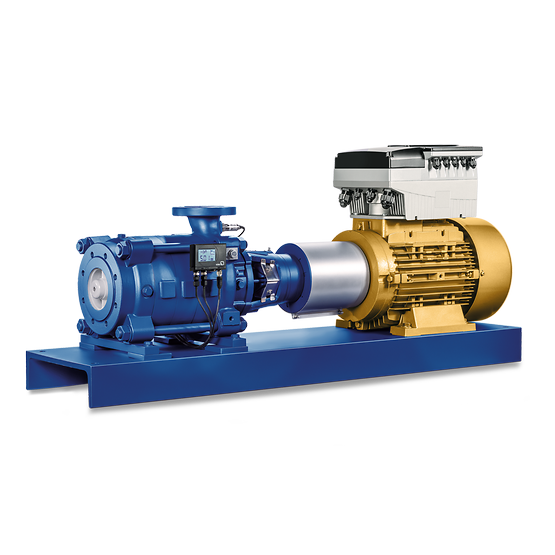

KSB MULTITEC A B C D
A horizontal or vertical, multistage ring-section centrifugal pump, baseplate-mounted or close-coupled, with an axial or radial suction nozzle, cast radial impellers and a motor-mounted speed control system.
Supply from the manufacturer
We will help you select the equipment and specify the configuration for your application.
Lead time depends on the model and configuration.
Request a quotation to confirm the price and delivery schedule.
Related products
Have not found the equipment you need?
Describe the task and operating conditions—we will select a pump or unit for your requirements.
