| Flow rate, m³/h | 5.12 |
|---|---|
| Head, m | 13–150 |
| Bearing Type | ball bearing |
| Drive Type | electric motor |
| Lubrication Type | grease lubrication, lubricated by pumped medium |
| Pumped Liquid Temperature, °C | 0–100 |
| Impeller Type | closed |
| Applications | Industry and process applications |
| Shaft Seal Type | mechanical seal |
| Connection Type | thread, flange |
| Drive motor frequency, Hz | 50, 60 |
| Casing Material | 1.4401 (AISI 316) |

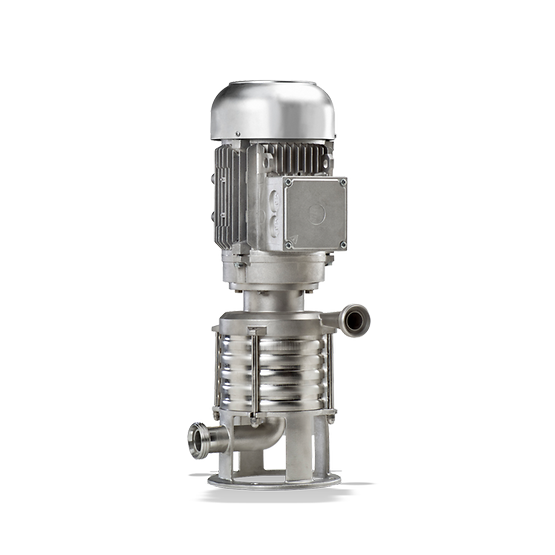

KSB Vitastage
A multistage, close-coupled centrifugal pump for vertical or horizontal installation. All wetted parts are stainless steel 1.4401/1.4408 (AISI 316/CF8M). Versatile, robust and highly energy-efficient, with CIP/SIP capability. All materials comply with FDA and EN 1935/2004 requirements. A transport trolley is available as an accessory.
Supply from the manufacturer
We will help you select the equipment and specify the configuration for your application.
Lead time depends on the model and configuration.
Request a quotation to confirm the price and delivery schedule.
