| Flow rate, m³/h | 5000–65000 |
|---|---|
| Head, m | 7–33 |
| Drive motor frequency, Hz | 50, 60 |
| Applications | Water supply, Industry and process applications, Energy |
| Pumped Liquid Temperature, °C | 0–40 |
| Bearing Type | rolling bearing, plain bearing |
| Connection Type | flange |
| Drive Type | electric motor |
| Impeller Type | mixed-flow, open |
| Lubrication Type | oil lubrication, lubricated by pumped medium |
| Shaft Seal Type | gland packing, mechanical seal |

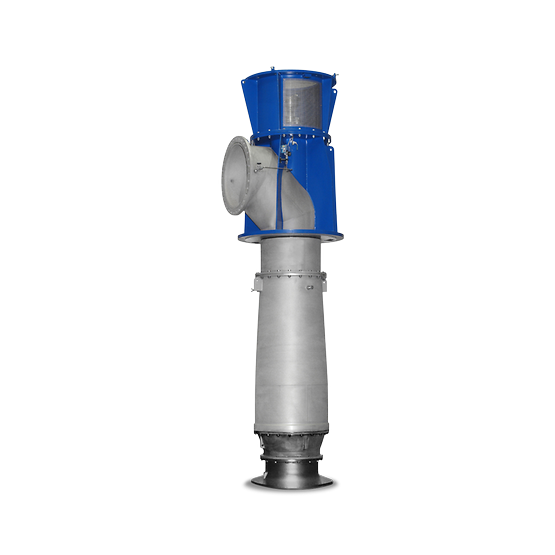

KSB SEZ
A vertical, tubular-casing pump with an open mixed-flow impeller, in single-stage or two-stage design. Suction is available with a nozzle or elbow, with a back-pull-out option. The discharge nozzle can be above or below floor level, with DIN or ANSI flanges. For raw, clean, process and cooling water in industry, water supply, power stations and seawater desalination plants.
Supply from the manufacturer
We will help you select the equipment and specify the configuration for your application.
Lead time depends on the model and configuration.
Request a quotation to confirm the price and delivery schedule.
