| Drive motor frequency, Hz | 50, 60 |
|---|---|
| Flow rate, m³/h | 1–1400 |
| Applications | Industry and process applications, Energy |
| Head, m | 3.5–236 |
| Pumped Liquid Temperature, °C | 0–300 |
| Bearing Type | plain bearing, ball bearing |
| Connection Type | flange |
| Drive Type | electric motor |
| Impeller Type | closed, closed/radial, multichannel, radial |
| Lubrication Type | lubricated by pumped medium |
| Shaft Seal Type | magnetic coupling |

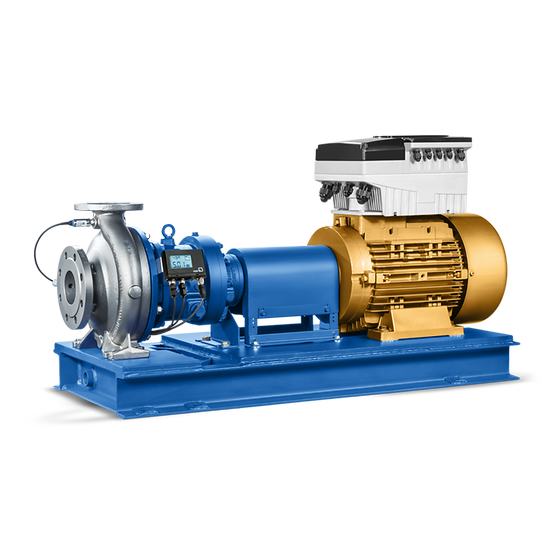

KSB MAGNOCHEM
A horizontal, leak-tight centrifugal volute pump in back-pull-out construction with a magnetic coupling, complying with DIN EN ISO 2858 / ISO 5199. Single-flow, single-stage design with a radial impeller. ATEX versions are available.
Supply from the manufacturer
We will help you select the equipment and specify the configuration for your application.
Lead time depends on the model and configuration.
Request a quotation to confirm the price and delivery schedule.
