| Drive motor frequency, Hz | 50, 60 |
|---|---|
| Flow rate, m³/h | 1.5–337 |
| Applications | Gas, Building services, Oil, Industry and process applications, Energy |
| Head, m | 2–99 |
| Pumped Liquid Temperature, °C | 350 |
| Bearing Type | plain bearing |
| Connection Type | flange |
| Drive Type | electric motor |
| Impeller Type | closed/radial |
| Lubrication Type | lubricated by pumped medium |
| Shaft Seal Type | mechanical seal |

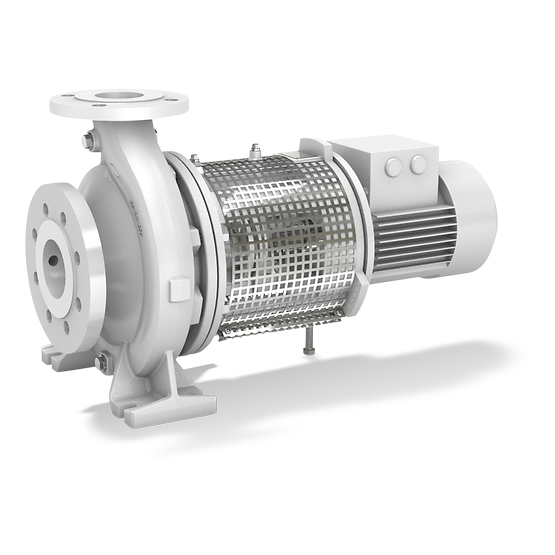

KSB ETABLOC SYT
A single-stage volute pump for horizontal or vertical installation, in back-pull-out design, with performance to EN 733. Features include a radially split casing, replaceable casing wear rings, integrally cast feet, a closed radial impeller with curved vanes, a single mechanical seal to EN 12756, a pumped-liquid-lubricated graphite plain bearing and a grease-lubricated radial ball bearing in the motor housing.
Supply from the manufacturer
We will help you select the equipment and specify the configuration for your application.
Lead time depends on the model and configuration.
Request a quotation to confirm the price and delivery schedule.
