| Drive motor frequency, Hz | 50, 60 |
|---|---|
| Flow rate, m³/h | 1–4800 |
| Applications | Industry and process applications, Energy |
| Head, m | 2–275 |
| Pumped Liquid Temperature, °C | 0–400 |
| Bearing Type | rolling bearing |
| Connection Type | flange |
| Drive Type | electric motor |
| Impeller Type | closed, radial |
| Lubrication Type | oil lubrication |
| Shaft Seal Type | mechanical seal |

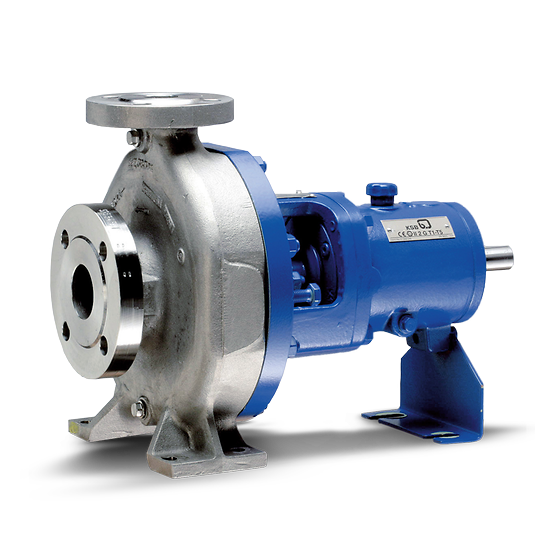

KSB CPKN
A horizontal radially split centrifugal volute pump in back-pull-out design, to EN 22 858 / ISO 2858 / ISO 5199, with a radial impeller, single-flow and single-stage design. The CPK version has a shaft reinforced at the seal area and reinforced bearings, with options for a wetted shaft and/or a conical seal chamber. It handles aggressive liquids in the chemical and petrochemical industries.
Supply from the manufacturer
We will help you select the equipment and specify the configuration for your application.
Lead time depends on the model and configuration.
Request a quotation to confirm the price and delivery schedule.
