| Flow rate, m³/h | 0–1278 |
|---|---|
| Head, m | 0–4000 |
| Casing Material | carbon steel, chromium steel |
| Applications | Industry and process applications, Energy |
| Pumped Liquid Temperature, °C | 0–200 |
| Bearing Type | plain bearing |
| Connection Type | flange and weld ends |
| Drive Type | turbine, electric motor |
| Impeller Type | single-suction |
| Lubrication Type | pressure lubrication |
| Shaft Seal Type | mechanical seal |

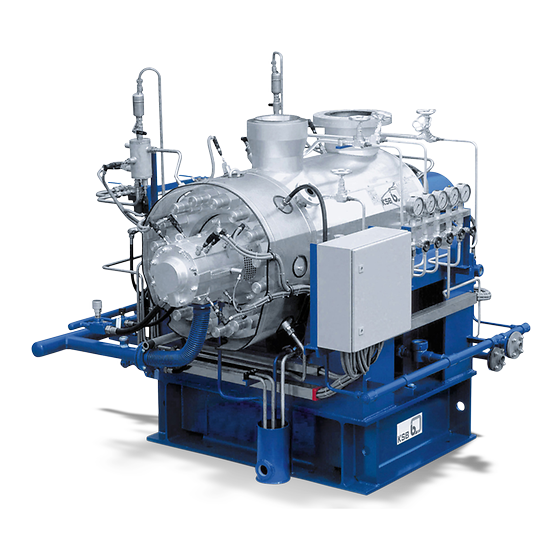

KSB CHTC
A horizontal double-casing high-pressure multistage pump with radial impellers, in single-flow or double-flow design, with DIN or ANSI flanges or weld-end connections. BB5 design to API 610 (CHTR).
Supply from the manufacturer
We will help you select the equipment and specify the configuration for your application.
Lead time depends on the model and configuration.
Request a quotation to confirm the price and delivery schedule.
